Why Cosmal Spool is better than others? plastic bobbins manufacturers


  • Made from first grade materials
  • Excellent concentricity
  • Strict and tight specifications for critical dimensions and tolerances
  • Smooth winding surface
  • Free from flash
  • Suitable for high speed winding
  • Easy disposal after used

  • We are the Southeast Asia Leading Spool Manufacturer
  • We have 48 years of spool manufacturing experience
  • ISO 9001:2015
  • RoHS Compliant
  • Comply to IEC and JIS standard
  • Excellent quality spools, premium services with cost-effective price
  • Environmental Friendly Production
  • SGS Inspection

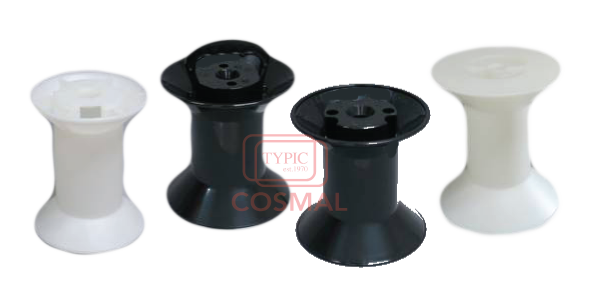

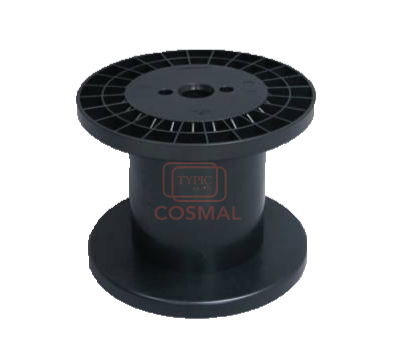

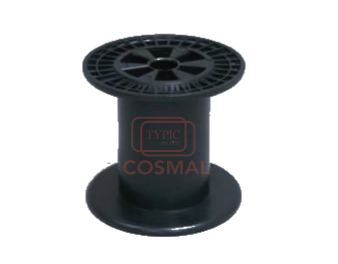

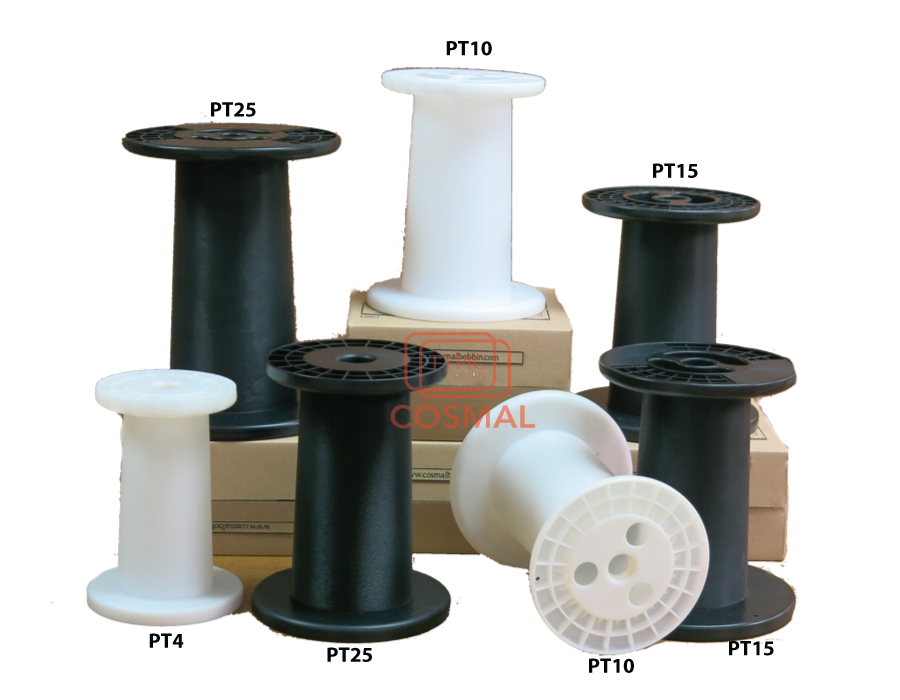

PT Series Spools Tappered Spool plastic bobbins manufacturers


plastic bobbins manufacturers
plastic bobbins

Dimensions in mm, dimensions are nominal dimensions.
Type Weight (gm) Spool Size (mm) Suggested Materials
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 D2 d1 d2 A1 A2 L1 L2 H1 / H2
Top Bottom Top Bottom Top Bottom
PT-2 150 105 115 60 67 10 10 170 150 20 PS,ABS
PT-4(H) 250 124 140 74 86 15 15 200 170 26 PS,ABS
PT-4(H) 340 124 140 74 86 15 15 200 170 26 PS,ABS
PT-4(K) 250 124 140 74 86 15 15 200 170 26 PS,ABS
PT-10 420 160 180 96 110 15 15 231 201 30 PS,ABS
PT-10 430 160 180 96 110 15 15 231 201 30 PS,ABS
PT-10 620 160 180 96 110 15 15 231 201 30 PS,ABS
PT-15 550 180 200 96 110 15 15 230 200 30 PS,ABS
PT-15 740 180 200 96 110 15 15 230 200 30 PS,ABS
PT-25 780 215 230 110 130 15 15 280 250 30 PS,ABS
PT-25 1000 215 230 110 130 15 15 280 250 30 PS,ABS
PT-25 1000 215 230 110 130 15 15 280 250 32 PS,ABS

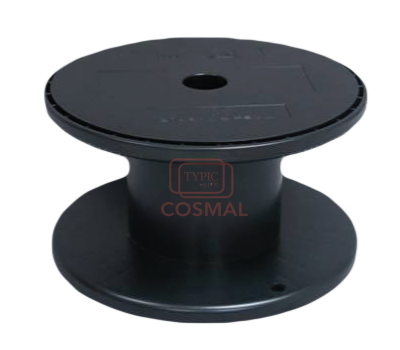

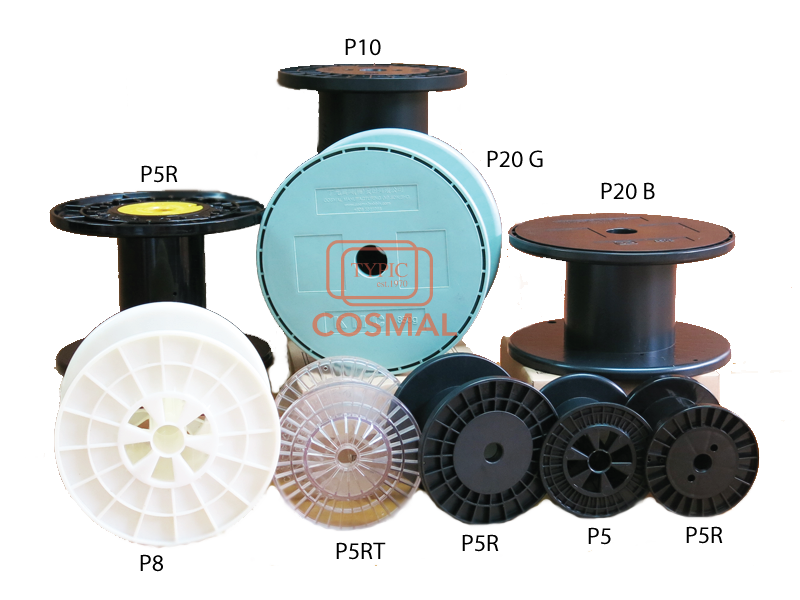

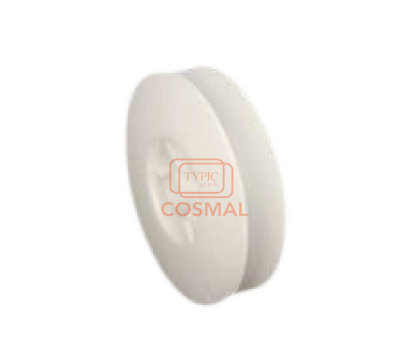

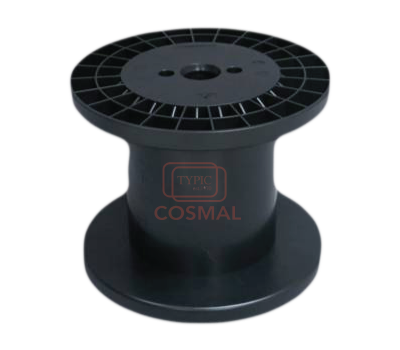

P Series Spools EDM wire Spool plastic bobbins manufacturers


plastic bobbins
plastic bobbins manufacturers

Dimensions in mm, dimensions are nominal dimensions.
Illustration No. Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
  L-3 200 120 76 10 150 130 20.5
  P-3 190 128 75 7 119 105 21.5
  P 3 (China) 210 124 66 12 117 93 20
  PL4 260 125 80 15 189 160 26
  P-5 250 155 90 6.5 119 106 22
  P5R 300 160 90 12 114 90 20
  P5R 350 160 90 12 114 90 20
  P8 600 225 95 12 134 110 30
  P-10 500 185 130 9 179 161 30
  P10 (China) 475 185 130 13 179 161 30
  P-20 850 267 132 15 147.5 115.5 36
  P30 1000 300 130 15 160 130 30

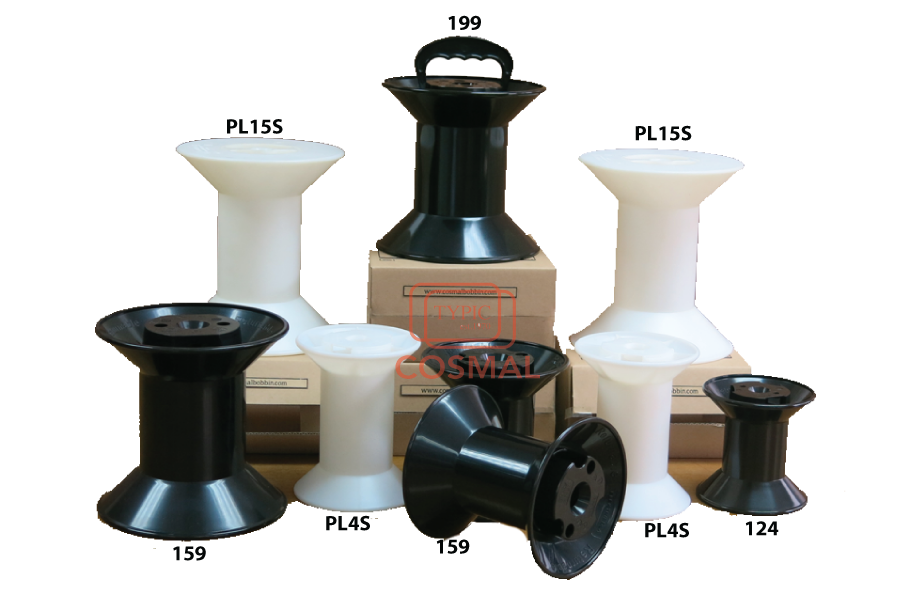

Biconical Spools

Exclusively for high speed spooling process.
Improved wire distribution and smooth spooling process



Dimensions in mm, dimensions are nominal dimensions.
Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
PL4S 260 135 80 32.5 175 110 22
124/45R 160 125 71 30 125 65 16
159/45R 315 160 90 37.5 160 85 22
HKV 160 315 160 90 37.5 160 85 22
199/45R 575 200 112 47 200 106 22
HKV 200 575 200 112 47 200 106 22
PL15S  850 200 100 46 230 126 22
 OP15 850 200 100 46 230 126 22

Steel cord, Bare wire, stranded wire Reels plastic bobbins manufacturers


plastic bobbins
Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2

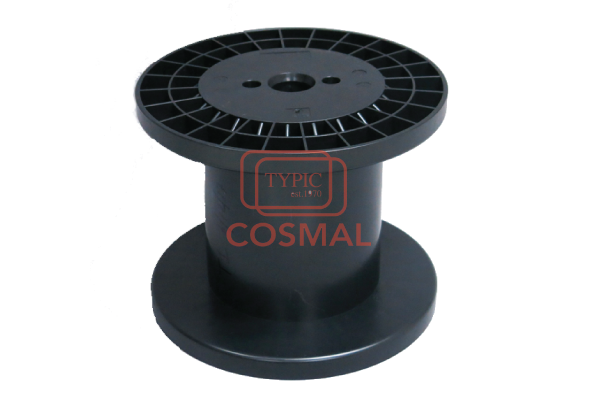

DIN 250 1000 250 150 20 200 160 32

Bobbin for Welding Wire


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
SS2   139 62 3 58 52 18

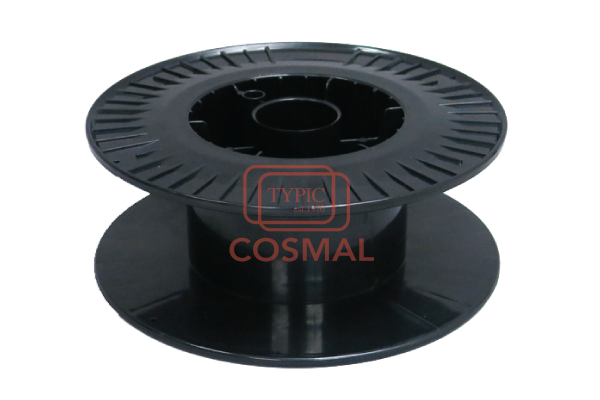

SD 270 270 146 6.6 106 92 52

Soldering Wire reels, Lyonese tread reels


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
P-3 190 128 75 7 119 105 21.5
P 3 © 210 124 66 12 117 93 20

Fine Wire, Superfine Wire Spools


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
PL4S 260 135 80 32.5 175 110 22
124/45R 160 125 71 30 125 65 16
159/45R 315 160 90 37.5 160 85 22
HKV 160 315 160 90 37.5 160 85 22
199/45R 575 200 112 47 200 106 22
PL15S  850 200 100 46 230 126 22
 OP15 850 200 100 46 230 126 22

Cable Bobbins


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
DIN 250 1000 250 150 20 200 160 32

Braiding Wire Reels


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
P-3 190 128 75 7 119 105 21.5
P 3 © 210 124 66 12 117 93 20

Low Alloy Wire Reels


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
DIN 250 1000 250 150 20 200 160 32
P-20 850 267 132 15 147.5 115.5 36

Fishing Line Reels, Monofilament Reels


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
DIN 250 50 80 66 1 11.5 9.5 15

Fibre Optic Cable Reels, Optical Fibre Spool


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
P 20 850 267 132 15 147.5 115.5 36

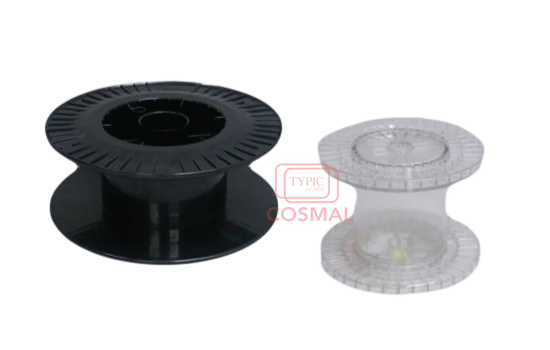

3D Printer Spools, 3D Printer Filament Bobbins


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
SS2 139 62 3 58 52 18
SD 270 270 147 7 106 92 52

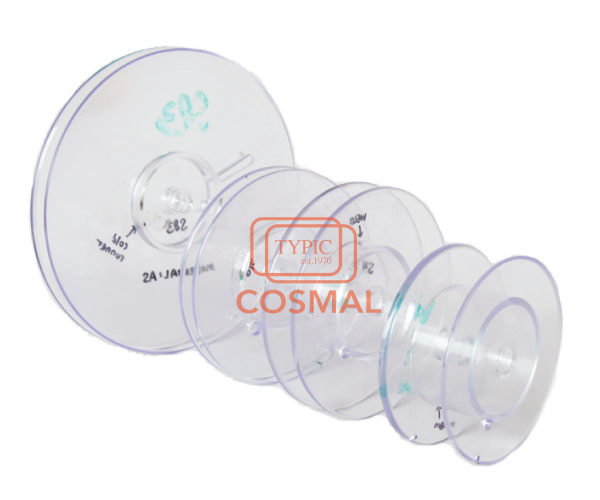

Litz Wire Spools, Bonding Wire Spools, Special Wire Spools, Brazing Wire Reels, Tape Reels


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
S87 40 82 50 3 31 25 10
S4 52 100 50 3 12 6 10
S49 52 100 50 3 18 13 10
S83 58 114   2.9 12 7 10
M5 58 118 105 2.6 22 17 11

plastic bobbins manufacturers

Extrusion Rubber Bobbins, Tubes Bobbins


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
SP204x160 181 204 106 5.3 170 160 103

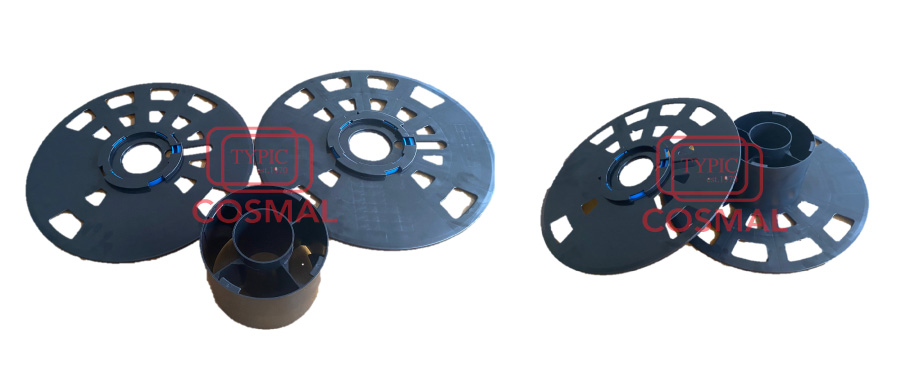

Collapsible Plastic Spool Self Assemble Spool


Steel Wire Bobbin


Type Weight (gm) Spool Size (mm)
Flange Diameter Barrel Diameter Flange Thickness Total Height Inner Height Bore Diameter
D1 d1 A1 L1 L2 H1 / H2
BP80 1434 253   101   15   184 153 32

Packaging
  • Please keep spools in a cool and dry area.
  • Excessive heat can lead to permanent deformation of the pastic material.
  • Spools are packed in plastic bags or cartoon box with or without pallet according to requirement.
  • Spools can be delivered in a 20 feet and 40 feet shipping containers for oversea customers.
  • Optimum used of freight area.
  • Complete truck-load without pallets


Special Request
  • Different bore diameters are available.
  • Company names can be printed on most of the spools
  • Additional holes and sticker label area on flanges can be arranged.

Material
  • PS= High Impact Polystyrene
  • PP =Polypropylene
  • ABS = Acrylonitrile Butadiene Styrene
  • Highly recommended for spools used under low temperature or contact with solvent.
  • Colours are available on request.
  • Virgin and regind materials are available


Tolerance
Specifications above are as approximate figure. Tolerances as customary in this trade reserved.


Disposal
100% recyclable material


Customised Spool
YES. We can make customised spools to suit your company need at anytime. Just "send us a sample of your spool and leave the rest to us".
